AMC1602A series
Characters Display 16x2
- LCD Mode:
- STN Negative
- Overall Dimensions (W x H x D mm):
- 80.0 x 36.0 x 14.0
- Active Area (W x H mm):
- 64.5.0 x 15.5
- Character Size WxH (mm):
- 2.95 x 5.55
- Interface Mode:
- Parallel (I²C / SPI)
- Polarizer Modes:
- Transmissive
- LCD Assembly:
- COB (Chip on Board)
AMC2004A series
Characters Display 20x4
- LCD Mode:
- STN Negative
- Overall Dimensions (W x H x D mm):
- 98.0 x 60.0 x 15.0
- Active Area (W x H mm):
- 76.0 x 25.2
- Character Size WxH (mm):
- 2.95 x 4.75
- Interface Mode:
- Parallel (I²C / SPI)
- Polarizer Modes:
- Transmissive
- LCD Assembly:
- COB (Chip on Board)
AMG12864J series
Graphic Display 128x64 COB
- LCD Mode:
- STN Positive
- Overall Dimensions (W x H x D mm):
- 75.0 x 52.8 x 9.0
- Active Area (W x H mm):
- 60.0 x 32.6
- Dot Size WxH (mm):
- 0.40 x 0.40
- Interface Mode:
- Parallel
- Polarizer Modes:
- Transflective
- LCD Assembly:
- COB (Chip on Board)
AMG24064P-G
Graphic Display 240x64 COG
- LCD Mode:
- FSTN Positive
- Overall Dimensions (W x H x D mm):
- 134.6 x 55.1 x 5.8
- Active Area (W x H mm):
- 111.0 x 37.0
- Dot Size WxH (mm):
- 0.41 x 0.47
- Interface Mode:
- Parallel
- Polarizer Modes:
- Transflective
- LCD Assembly:
- COG (Chip on Glass)
AFY320240B0-3.5N12NTM
TFT Module
- Display Format:
- 320(RGB) x 240
- Overall Dimensions (W x H x D mm):
- 76.9 x 63.9 x 3.26
- Active Area (W x H mm):
- 75.25 x 80.06
- Brightness (nits):
- 550
- Interface Mode:
- RGB
- Polarizer Modes:
- Transmissive
- Viewing Direction:
- 12 o'clock
- Touch Panel:
AFY800480A0-5.0N6NTN-R
TFT Module
- Display Format:
- 800(RGB) x 480
- Overall Dimensions (W x H x D mm):
- 121.0 x 75.9 x 4.2
- Active Area (W x H mm):
- 152.4 x 91.44
- Brightness (nits):
- 240
- Interface Mode:
- RGB
- Polarizer Modes:
- Transmissive
- Viewing Direction:
- 6 o'clock
- Touch Panel:
- RTP

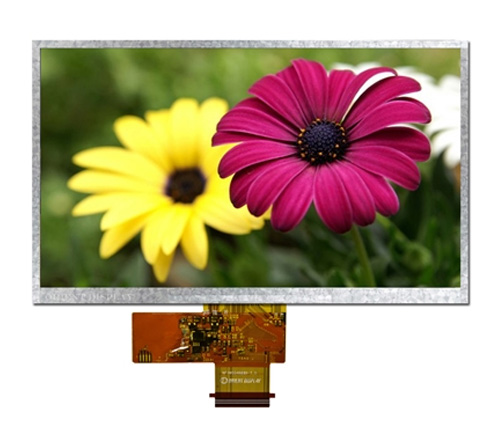

AFY800480B0-7.0N12NTM
TFT Module
- Display Format:
- 800(RGB) x 480
- Overall Dimensions (W x H x D mm):
- 164.9 x 100 x 3.5
- Active Area (W x H mm):
- 153.84 x 85.63
- Brightness (nits):
- 520
- Interface Mode:
- RGB
- Polarizer Modes:
- Transmissive
- Viewing Direction:
- 12 o'clock
- Touch Panel:
AFY800480B07.0N12NTMC
TFT Module
- Display Format:
- 800 x 480
- Overall Dimensions (W x H x D mm):
- 164.9 x 100 x 5.40
- Active Area (W x H mm):
- 153.84 x 85.63
- Brightness (nits):
- 420
- Interface Mode:
- RGB
- Polarizer Modes:
- Transmissive
- Viewing Direction:
- 12 o'clock
- Touch Panel:
- CTP
