Do you want to modernize your existing machines? With the InduSmart® Panel-PC GreenLine you can enter the world of industrial digitalization easily, flexibly and economically.

SIMPLE - The industrial Panel PC is completely assembled and can be integrated into existing systems easily and without much effort.

FLEXIBLE - The Panel PC is based on a Raspberry Pi3 model B+. As a result, you have the option to select a large number of operating systems and applications.

VALUE FOR MONEY - We have deliberately eliminated superfluous features, which simply drive up the price, during the development of the InduSmart Panel-PC GreenLine. The main focus of the PC is on the key elements of input, display and processing.

Contattataci to find out more about its technical specifications and how it can improve your operations.

Application examples

Retrofitting solutions in the following fields of application:

  • Machine data visualization
  • Web Terminal Interfaces
  • Status display
  • General reports

Fields of application in industrial digitalization:

  • Produzione senza carta
  • Display function for production documents
  • Status display
  • Simple feedback

Other applications:

  • Kiosk systems
  • Information terminals

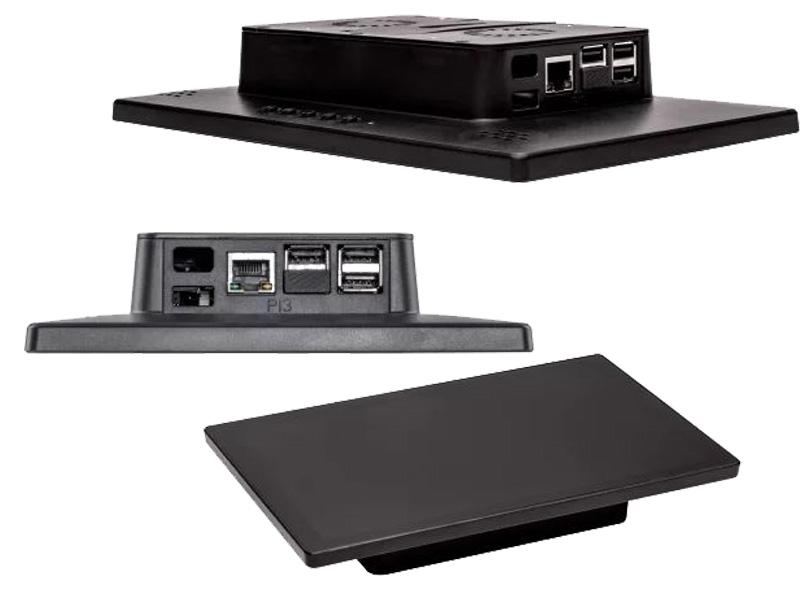

greenline show

Product Properties

  • The Indusmart® Panel PC GreenLine is based on the proven single board computer Raspberry PI3 Model B+. This board is so well known and widespread that there are a large number of operating systems and applications freely available for it. These are available and documented in the corresponding communities.
  • This product is an inexpensive entry for use in normal relatively clean environments.
  • The Indusmart® Panel PC GreenLine has a plastic housing with a variety of features. The projected capacitive touch enables contemporary operation. Thanks to an integrated stand and a VESA mounting, the panel can be used almost anywhere.
  • The panel has a prepared selection menu for different operating systems, so the user has the possibility to install the one that suits him best.
  • Built-in stereo loudspeaker
  • System with integrated fan
  • HDMI and USB-C input ports
  • Adjustable backlight


Techincal Data

  • Dimensions (W x H x D): 244 x 159 x 41 mm
  • Weight: 765 g incl. power supply
  • VESA: Grid 75 x 75 mm
  • Protection class: IPX1
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -20°C to 70°C
  • Housing material: ABS plastic, black

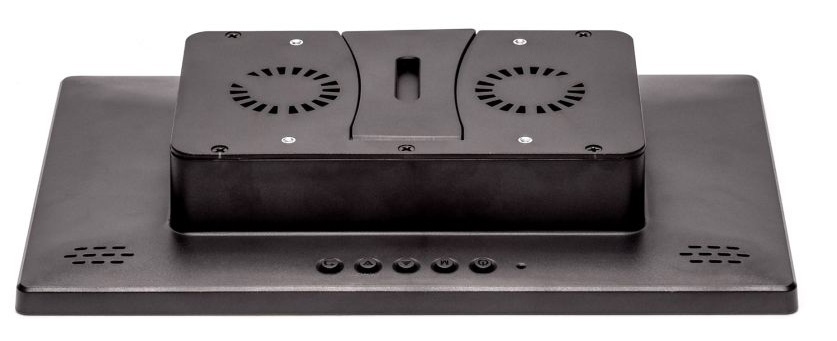

greenline tech data

Touch Display

  • Screen diagonal: 10.1"
  • Aspect ratio: 16:9
  • Panel Type: IPS
  • Screen Display resolution: 1280 x 800
  • Brightness: 400 cd/m2
  • Refresh rate: 60 Hz
  • Viewing angle: 178°
  • Contrast ratio: 1000:1
  • Touch technology: capacitive

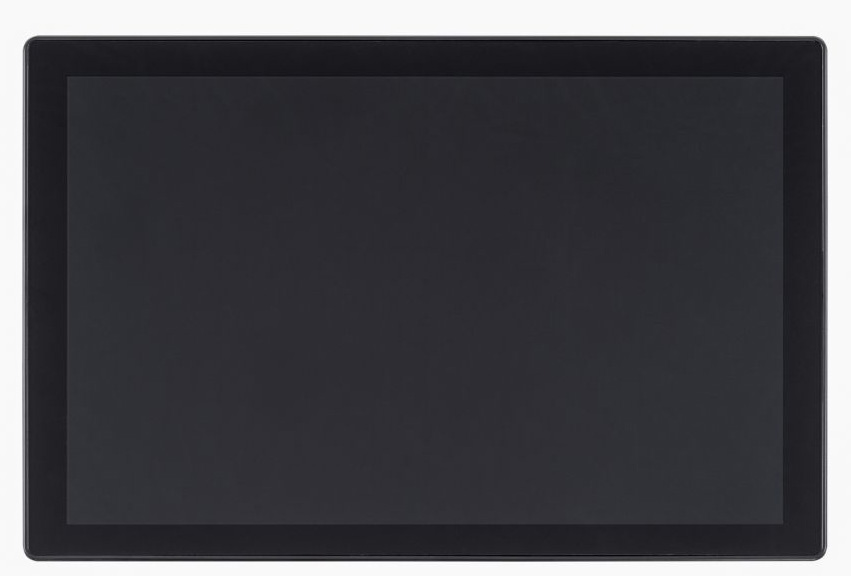

greenline display

Computer

With Raspberry PI3 Model B+

    Interfaces
  • DC 12V power supply
  • USB Type C
  • HDMI
  • 3,5 mm audio out / headphones
  • 3 x USB Type A
  • Ethernet
  • Integrated speakers: 8 Ohm 1 W
  • Fan
  • Fold-out stand

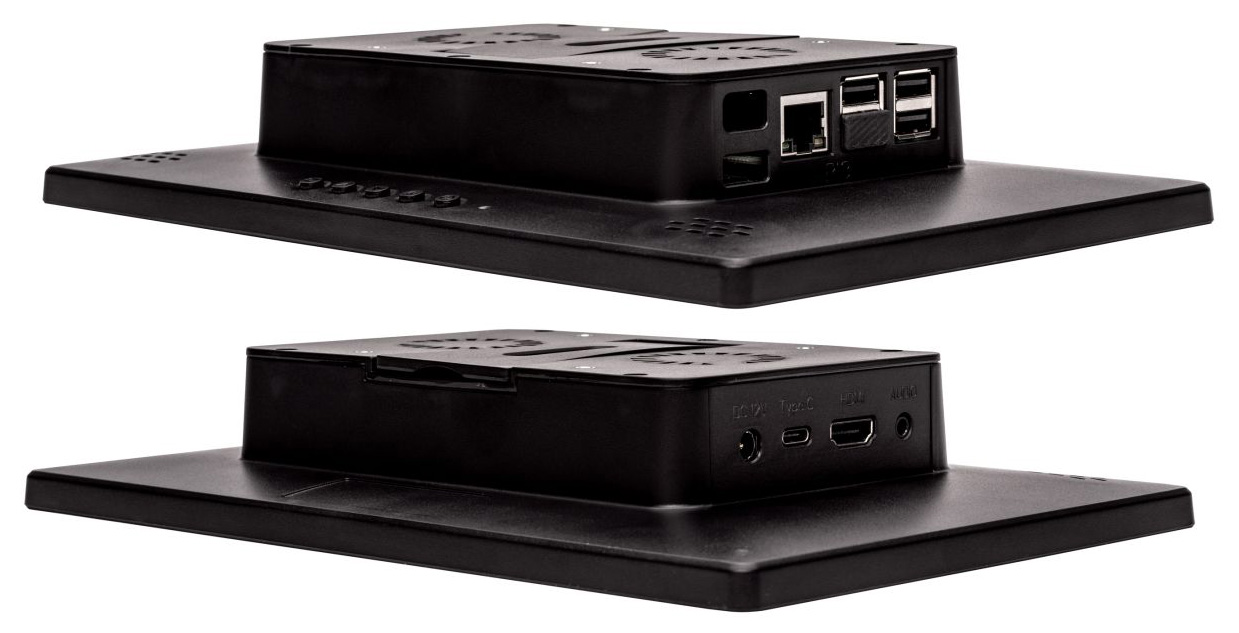

greenline computer

Accessoires

  • DC power supply unit
  • Standard HDMI cable
  • USB-A to USB-C cable
  • USB-C to USB-C cable
