The InduSmart® series IPBK001 (BlackLine) Panel PC is an industrial computer designed to optimize the visualization of process data on machines and systems. Equipped with an x86 controller, it is compatible with Windows and Linux operating systems, offering users a wide flexibility.

Main features

Display Format:
Available with a 21.5" screen, with an 18.5" version coming soon.
Modular Design:
Based on a modular concept for greater flexibility and customization.
Sturdy Frame:
Fanless metal housing, ideal for industrial environments.

Advantages

Versatility:
Wide compatibility with industrial software and applications thanks to the x86 controller.
Reliability:
Designed to perform in extreme conditions without compromising performance.
Flexibility:
The modular design allows for easy upgrades and customizations, extending the life of the device.

The IPBK001 Panel PC (BlackLine) is the ideal solution for those looking for a powerful and reliable industrial PC for visualizing process data.
Contact us to find out more about its technical specifications and how it can improve your operations.

blackline front

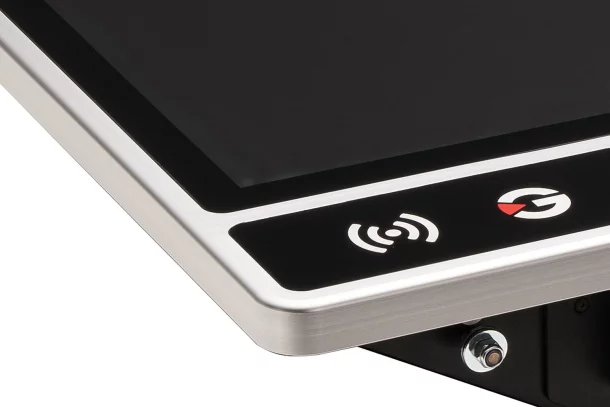

Robust glass and aluminum front

blackline front

Touch surface with 6 capacitive buttons

blackline front

Tool bar with
NFC reader

blackline front

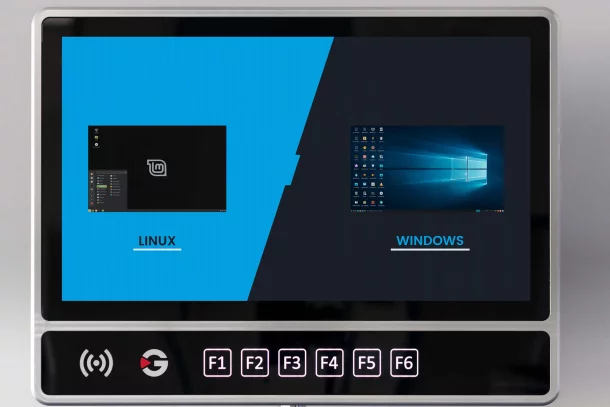

OS: Windows 10/11
(Linux optional)

Technical Specifications

DimensionsWxHxD 540x407x92 mm
Weight10 kg
VesaGrid 100 x 100 mm; bolt M5x13
IPIP65 Front / IP54 Rear
IKTouch-screen glass is IK07-rated
Op. Temp.0°C - 50°C
Connector block8 x icotek cable gland system KEL-Quick-E4, assembled, with cap, 2xQT4, 2xQT5, 2xQT6, 2xQT7
RFIDSmart Card Interface: ISO 14443 A/B, MIFARE, FeliCa, NFC
Vin24 V DC
Consumption100 W
Format21.5"
Resolution1920 x 1080 FullHD
Brightness300 cd/m2
View Angle89°/ 89°
TouchCapacitive 10 points
CPUIntel Core i5 @1.60GHz, 4 cores (logical 8), X64 architecture, TPM or 64-Bit-x86 Intel Celeron
RAM8GB DDR4 2400MHz, DDR4-2400 SO-DIMM
HardiskSSD 128GB

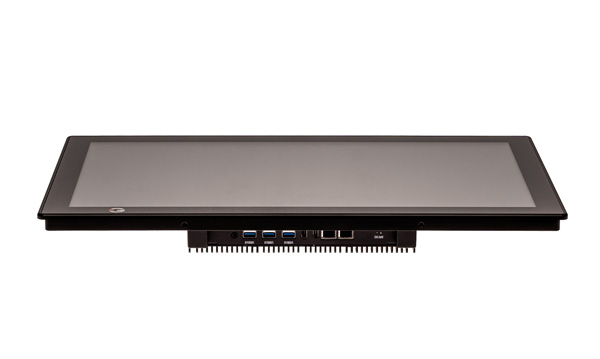

Interface4 x USB-A (USB3.0), 1 x USB-C (USB3.1), 2 x Ethernet, Display port, 1 x Serial
O.S.Windows10/11 Pro (Linux opz.)

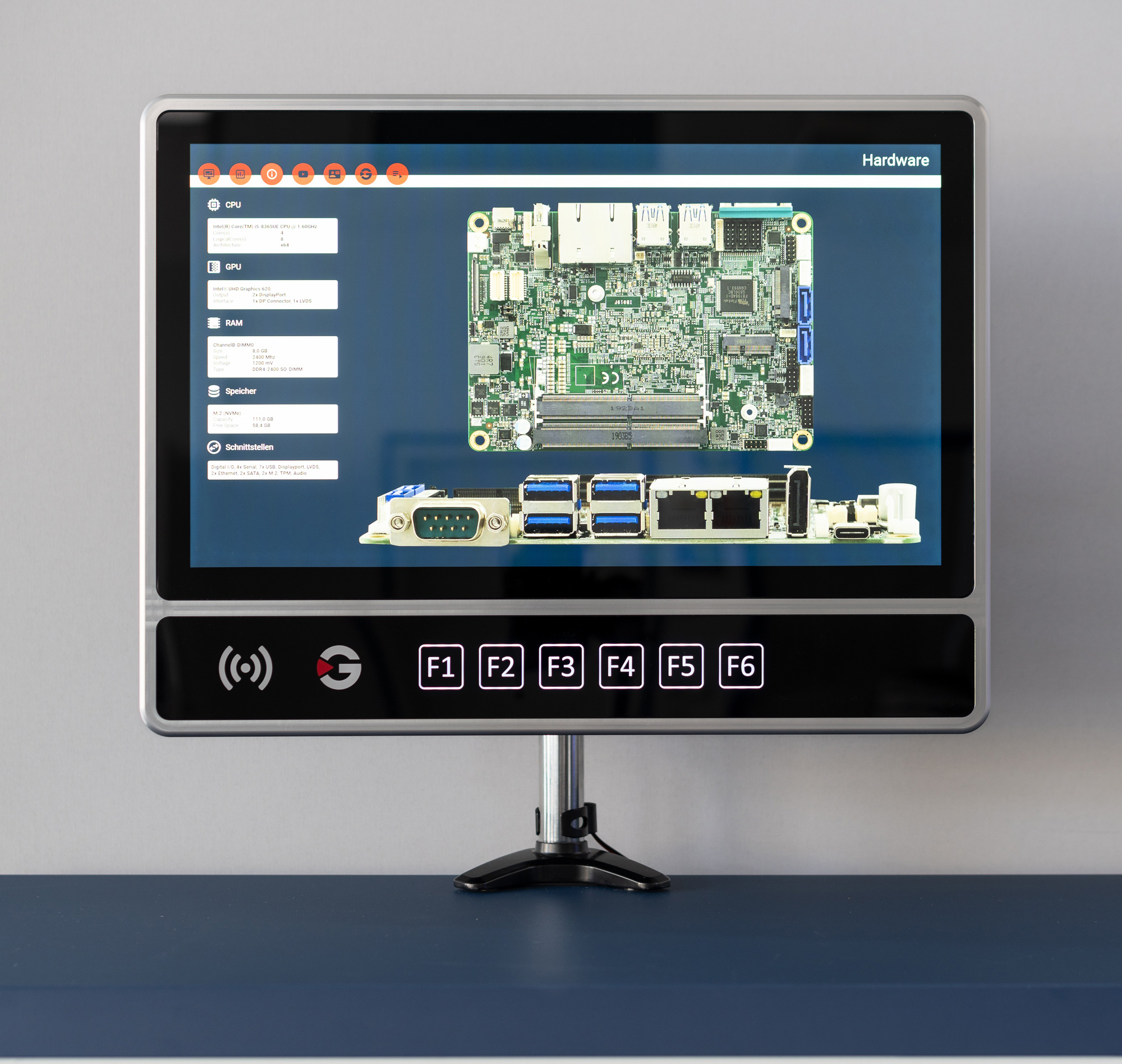

The large capacitive touchscreen allows for simultaneous operations, and thanks to VESA mounting, the panel can be used virtually anywhere.

It features a customizable, illuminated capacitive button bar with six buttons and a built-in NFC module.

Additional options such as Wi-Fi, emergency shutdown and custom logo are available.

panel pc blackline

Customization Options

Standard options:

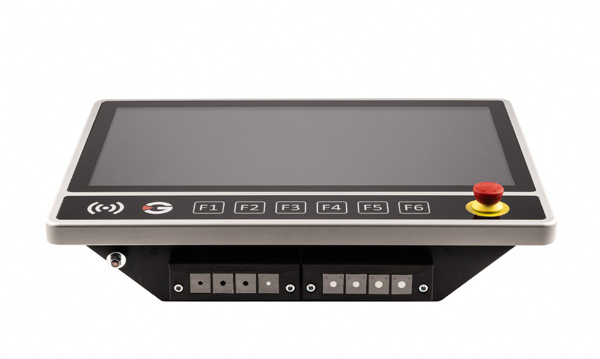

  • Emergency off/emergency stop button (installed in the control panel)
  • WIFI (WIFI module installed incl. 2 antennas)
  • Control bar prints (customer logo, specific key symbols)
  • Control bar changes (button colors, codes, timing)

Custom options to be agreed:

  • Other button module interfaces, USB joystick buttons, USB bidirectional control interface, switching outputs.
  • Other functions and modules can be realized upon request and subject to technical approval.
