Litemax® industrial computing are the full range solutions from 3.5" and Mini-ITX motherboards, fanless box PCs, and panel PCs. All of them are featuring optimized mechanical design and flexible I/O interface options, assuring maximized flexibility for design-in efficiency. Litemax® industrial computing come with various standard form factors and scalable sizes, allowing quick integration for customer applications. Please contact us to find out the full range and find the model that best suits your needs.
Litemax Monitor/PanelPC

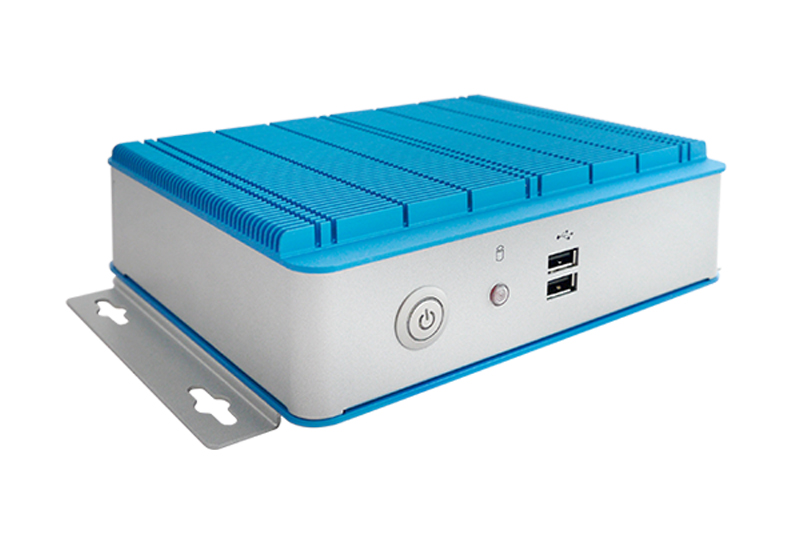

Intel® Braswell SoC onboard processor | Dual display: HDMI/DP | 1 HDMI, 1 DP, 3 USB, 1 COM, 2 LAN | Wide temperature (-20°C ~ 60°C) | Watchdog timer available | Dimensions (W)x(D)x(H)mm 164x106.5x30
Intel® Bay Trail SoC onboard processor | Dual display: VGA/HDMI | 1 VGA, 1 HDMI, 2 USB, 1 COM, 2 LAN | Wide temperature: -20°C ~ 60°C | Watchdog timer | Dimensions (W)x(D)x(H)mm 169x117.7x3
4th Gen. Intel® Core i7/i5/i3/ Celeron LV mobile processors | Dual display: VGA/HDMI | Two Intel® Gigabit Ethernet ports | 1 VGA, 1 HDMI, 6 USB, 2 COM, 2 LAN, 1 Audio | Watchdog timer | Dimensions (W)x(D)x(H)mm 260x146x62
Intel® Bay Trail SoC onboard processor | Dual display: VGA/HDMI | 1 VGA, 1 HDMI, 4 USB, 3 COM, 2 LAN, 1 Audio | Wide temperature (-20°C ~ 50°C) | Watchdog timer available | Dimensions (W)x(D)x(H)mm 180x148x52

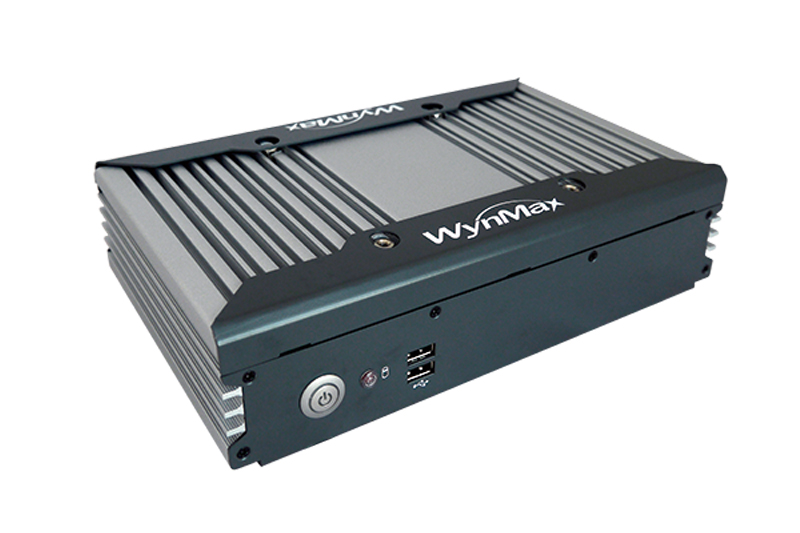

3rd Gen. Intel® Core™ i7/i5/i3/Celeron® Mobile Processors | Dual display: VGA/DVI-D | Two Intel Gigabit Ethernet ports | 1 VGA, 1 DVI-D, 6 USB, 2 COM, 1 PS2, 2 LAN, 1 Audio | AC 100 ~ 240V input | Watchdog timer available | Dimensions (W)x(D)x(H)mm 252x200x59
3rd Gen. Intel® Core™ i7/i5/i3/Celeron® Mobile Processors | Triple display: VGA/2 DP (Display Port) | One Intel Gigabit Ethernet port | 1 VGA, 2 DP, 2 USB, 1 COM, 1 LAN, 1 Audio | DC 12V input with an adapter | Watchdog timer available | Dimensions (W)x(D)x(H)mm 200x150x51

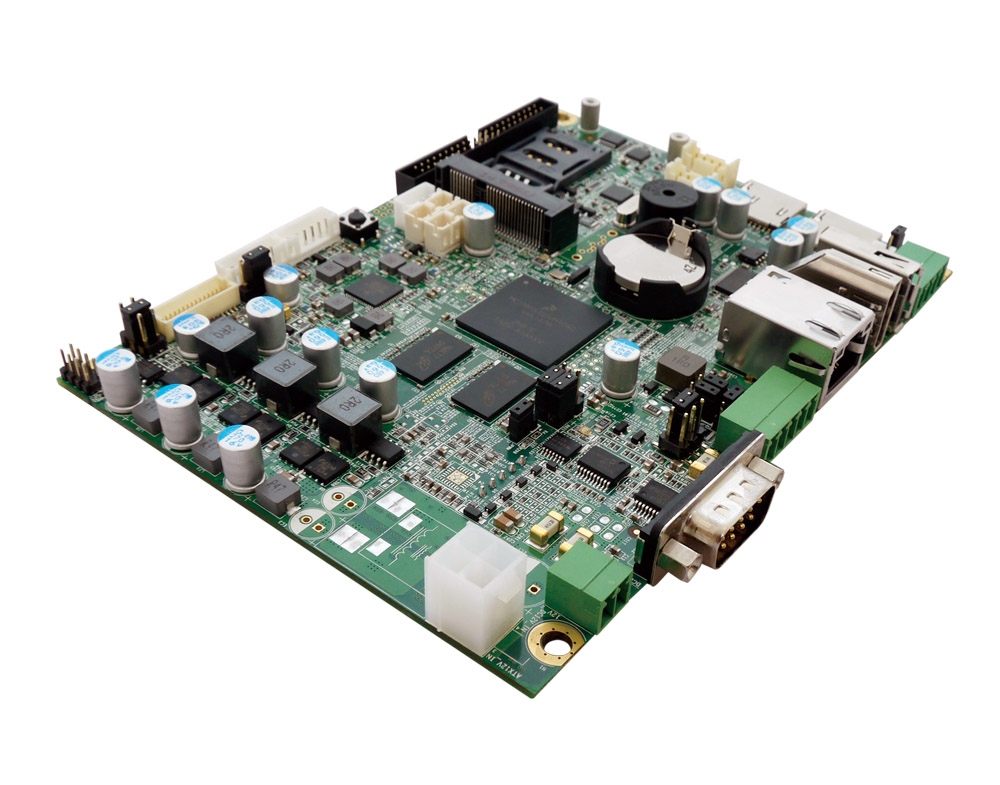

Freescale i.MX6 series Cortex®-A9 Dual Lite 1.0GHz | Onboard DDR3 1GB Memory | Supports TTL/LVDS, HDMI output | Supports Gigabit LAN | 1 Mini-PCIe, 2 micro SD and 1 SIM Card expansion slots | 2 COM, 3 USB 2.0 Host and 1 USB 2.0 OTG | 4/5-wire Touch Screen Interface
Intel® Atom™ E3800 series SoC on board | One 204-pin SO-DIMM up to 8GB DDR3L 1333MHz SDRAM | Dual Display: VGA/HDMI/LVDSTwo Intel® Gigabit Ethernet port| 2 Mini-PCIe (1 w/ mSATA) expansion slots | 1 SATA II, 3 COM, 1 USB 3.0 and 5 USB 2.0

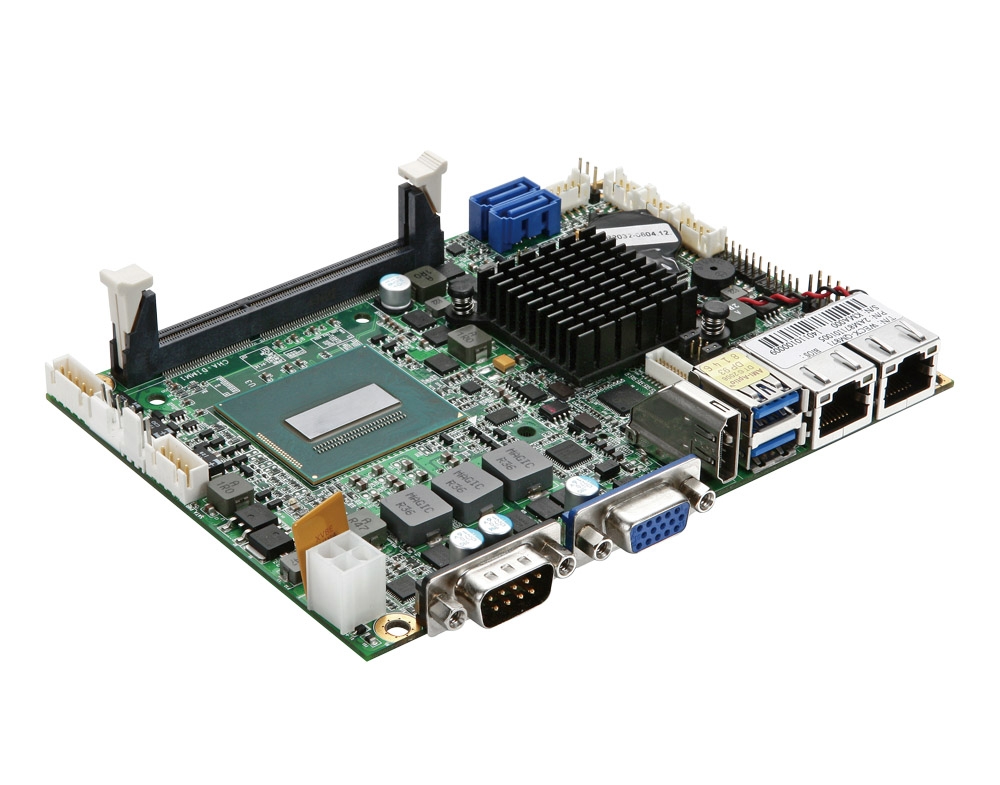

4th Gen. Intel® Core® i7/i5/i3/ Celeron® processors with Intel® QM87 chipset | One 204-pin SO-DIMM up to 8GB DDR3/L 1333/1600MHz SDRAM | Multi Display: VGA/HDMI/LVDS | Two Intel® Gigabit Ethernet ports | 1 Mini-PCIe (w/ mSATA) expansion slot | 2 SATA III, 2 COM, 2 USB 3.0 and 4 USB 2.0
Intel® Apollo Lake-I SoC on board | One 204-pin SO-DIMM DDR3L up to 1866MT/s 8GB SDRAM | Multi Display: HDMI/DP/eDP(LVDS), LVDS co-lay with eDP | Two Intel® Gigabit Ethernet ports | 1 PCIe x1, 2 Mini-PCIe (1 w/ mSATA, 1 w/ Micro SIM) expansion slots | 1 SATA III (w/ SATADOM), 4 COM, 4 USB 3.0, 2 USB 2.0 and Micro SIM socket | Supports 4K2K Resolution Display
1st Gen. Intel® Core™ i7/i5/i3/ Celeron® processors with Intel® QM57 chipset | Two 204-pin SO-DIMM up to 8GB DDR3 800/1066MHz SDRAM | Dual Display: VGA/DVI-D/LVDS | Two Intel® Gigabit Ethernet ports | 1 PCI and 1 Mini-PCIe expansion slots | 6 SATA II, 6 COM and 10 USB 2.0 | RAID 0, 1, 5, 10 supported
2nd Gen. AMD Embedded R-Series APU processors with AMD A77E chipset | Two 204-pin SO-DIMM up to 16GB DDR3 1600/1866/2133MHz SDRAM | Multiple Display: four HDMI/LVDS | One HDMI port share with LVDS function by jumper | Two Intel® Gigabit Ethernet ports | 1 PCIe x16 and 2 Mini-PCIe (1 w/ mSATA) expansion slots | 4 SATA III, 3 COM, 4 USB 3.0 and 8 USB 2.0 | Supports 4K/2K Resolution Display

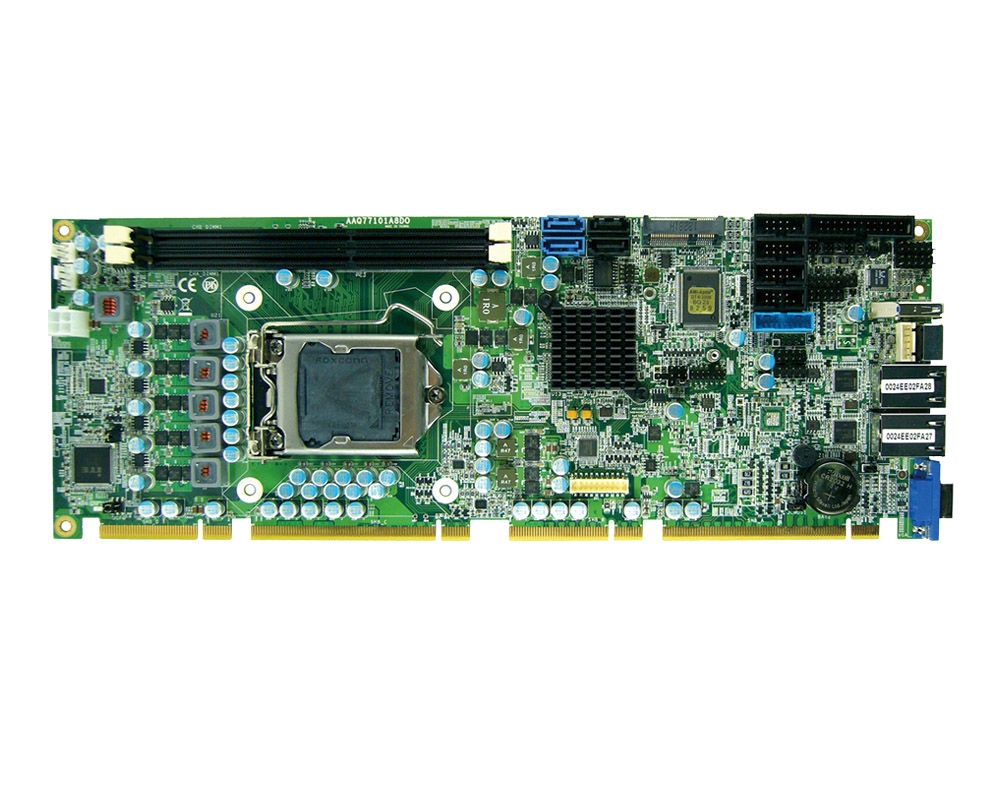

3rd Gen. Intel® Core™ i7/i5/i3/ Celeron® processors with Intel® Q77 chipset | Four 240-pin DIMM support dual channel DDR3 1600MHz SDRAM up to 32GB | Dual Display: VGA/DVI-D/HDMI | Two Intel® Gigabit Ethernet ports | 3 PCI, 2 PCIe x1, 1 PCIe x4, 1 PCIe x16 and 1 C-Fast expansion slots | 2 SATA III, 3 SATA II, 6 COM, 4 USB 3.0, 10 USB 2.0 | One SATA II C-Fast
Support Intel® Atom™ D525 1.8GHz dual-core Processor and ICH8M | 1x DDR3 SO-DIMM support up to 4GB DDR3 800MHz SDRAM | Support MPEG2 Decode in HW | Support four PCI, two SATA II, eight USB 2.0
Intel® Skylake-U Series Processor on board | One 260-pin SO-DIMM up to 16GB DDR4 2133MHz SDRAM | Multi Display: HDMI/DP/LVDS(eDP), LVDS co-lay with eDP | Two Intel® Gigabit Ethernet ports | 2 Mini-PCIe (1 w/ mSATA, 1 w/ Micro SIM) expansion slots | 1 SATA III, 3 COM, 2 USB 3.0, 4 USB 2.0 and Micro SIM socket | Supports 4K2K Resolution Display
COM Express Carrier board | Compatible Models : COM-Express Basic Modules (125 x 95 mm) / COM-Express Compact Modules (95 x 95 mm) | Dual Display: VGA/DVI-D/2LVDS | Two Realtek Gigabit Ethernet ports | 2 SATA II, 6 COM, 7 USB 2.0 and 1 IDE | 2 PCI, 1 PCIe x4, 1 PCIe x16, 1 Mini-PCIe and 1 CF expansion slots

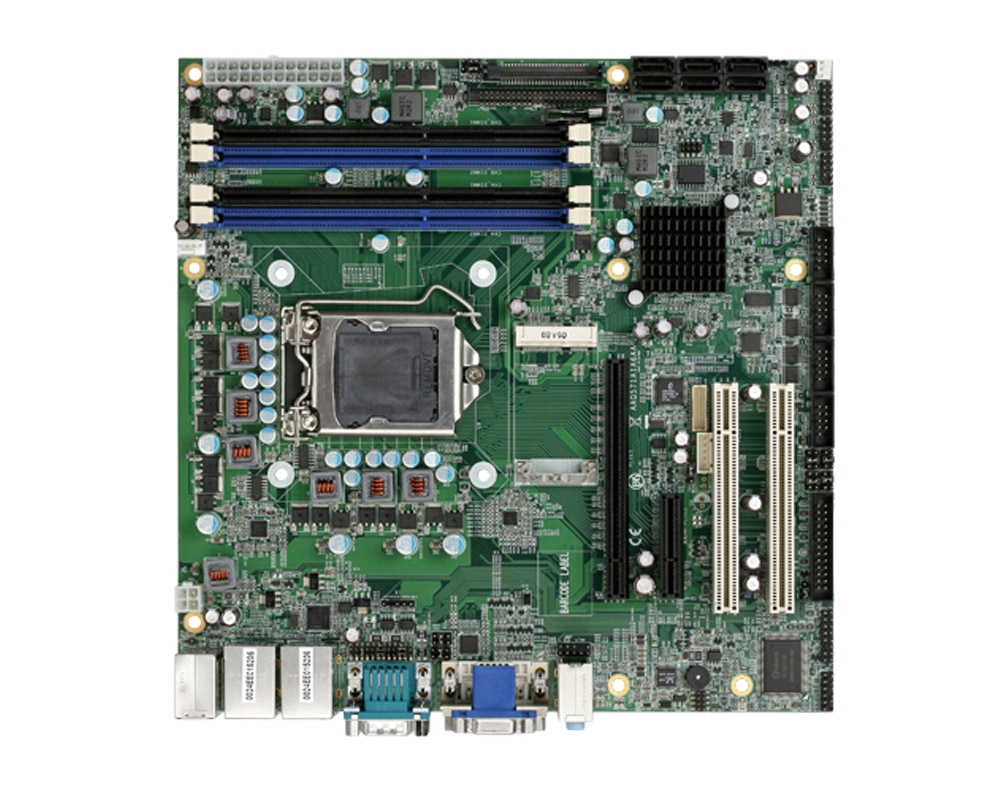

3rd Gen. Intel® Core™ i7/i5/i3/ Celeron® processors with Intel® Q77 chipset | Two 240-pin DIMM up to 16GB DDR3 1333/1600MHz SDRAM | Dual Display: VGA/DVI-D | Two Intel® Gigabit Ethernet ports | 4 PCI, 1 PCIe x4, 1 PCIe x16 and 1 Mini-PCIe (w/ mSATA) expansion slots | 2 SATA III, 4 SATA II (2 on BP), 4 COM, 3 USB 3.0 and 8 USB 2.0 (4 on BP)
Intel® Atom™ D525 processor with Intel® ICH8M chipset | Two 204-pin SO-DIMM up to 4GB DDR3 667/800MHz SDRAM | Dual Display: VGA/DVI-D/LVDS | Two Realtek Gigabit Ethernet ports | 4 PCI, 1 Mini-PCIe, 4 ISA and 1 CF expansion slots | 3 SATA II, 6 COM and 8 USB 2.0
