Suitable to cover a wide range of applications - advertising, digital signage, transportation, recreational, handheld devices, industrial - LiteMax' products are available in a wide range of sizes and features. Below is a selection of sunlight readable TFT displays, bar displays, motherboards and systems. Please contact us to find out the full range and find the model that best suits your needs.

Litemax BOX PC/Embedded
Litemax-7"

DLF07: 7" TFT LCD, LED Backlight 1000nits, 1280x800 or 1024x600

Industry leading LED backlight | Aspect ratio 16:9 | Wide Temperature (-20°~70°) | Low power consumption | BL MTBF 70.000hrs

Litemax-10.1"

DLF101: 10.1" TFT LCD, LED Backlight 1000nits, WSVGA

Sunlight Readable | LED Backlight | High Shock & Vibration Resistance | Low Power Consumption | Wide Operation Temp. (-20°C~70°C) | High Uniformity | Low EMI Noise | Wide Dimming | Life Expectancy

Litemax-10.4"

DLF1095-A: 10.4" TFT LCD, LED Backlight 1300nits, 1024x768

Sunlight Readable | LED Backlight-High Shock & Vibration Resistance | Low Power Consumption | Wide Op. Temp. (-30°C~80°C) | Wide viewing angle of 178°H 178°V

also available 1000/1600/2000 nits and 800x600

Litemax-12"

DLF126: 12" TFT LCD, LED Backlight 1600/2000nits, XGA(1024x768)

Industrial leading LED Backlight | XGA(1024x768) High Definition | High Shock & Vibration Resistance | Low Power Consumption | Wide Op. Temp. (-30°C~80°C) | BL MTBF 70.000hrs

Litemax-15"

DLF156: 15" TFT LCD, LED Backlight 1000/1600nits, XGA(1024x768)

Industrial leading LED Backlight | XGA(1024x768) High Definition | High Shock & Vibration Resistance | Low Power Consumption | High Contrast | Low EMI Noise | Wide Dimming | BL MTBF 70.000hrs

Litemax-21.5"

DLF212: 21.5" TFT LCD, LED Backlight 1200/1600nits, 1920x1080

Wide viewing angle of 178°H 178°V | BL MTBF 70.000hrs | High contrast ratio 3700:1 | Low Power Consumption

Litemax-32"

DLF320: 32" TFT LCD, LED Backlight 2500nits, 1920x1080

Sunlight readable 2500nits | Wide viewing angle of 178°H 178°V | BL MTBF 100.000hrs | High color contrast ratio 1100:1 | Low Power Consumption

Litemax-55"

DLF550: 55" TFT LCD, LED Backlight 1600nits, 1920x1080

Wide viewing angle of 178°H 178°V | BL MTBF 70.000hrs | High contrast ratio 3700:1 | Low Power Consumption

DL series is also available as Open Frame or Chassis version and with A/D board included
Litemax-6.2"-bar

SSF063: 6.2" resized TFT LCD, LED Backlight 1000nits, 1024x250

Sunlight readable 1000nits | Aspect ratio 16:4 | BL MTBF 70.000hrs | Low Power Consumption

Litemax-9.9"-bar

SSF103: 9.9" resized TFT LCD, LED Backlight 700nits, 800x200

High brightness 700nits | Aspect ratio 16:4 | BL MTBF 70.000hrs | Low Power Consumption

Litemax-13.9"-bar

SSF139: 13.9" resized TFT LCD, LED Backlight 600nits, 1280x398

High brightness 600nits | Aspect ratio 16:5 | BL MTBF 70.000hrs | Low Power Consumption | Wide temp. range (-30°C~85°C)

Litemax-15.9"-bar

SSF151: 15.9" resized TFT LCD, LED Backlight 1000nits, 1280x512

Sunlight readable 1000nits | Aspect ratio 16:6.4 | BL MTBF 70.000hrs | Low Power Consumption

Litemax-17.2"-bar

SSF172: 17.2" resized TFT LCD, LED Backlight 400nits, 1366x512

Aspect ratio 16:6 | BL MTBF 70.000hrs | Low Power Consumption

Litemax-21.2"-bar

SSF212: 21.2" resized TFT LCD, LED Backlight 1000nits, 1920x316

Sunlight readable 1000nits | Aspect ratio 16:2.6 | BL MTBF 100.000hrs | Low Power Consumption

Litemax-27.5"-bar

SSF275: 17.2" resized TFT LCD, LED Backlight 1000nits, 1366x70 smart shelf display (display prezzi)

Aspect ratio 16:1 | Low Power Consumption | Wide viewing angle of 178°H 178°V | USB 3.0 functionality

Litemax-34.8"-bar

SSF348: 34.8" resized TFT LCD, LED Backlight 1000nits, 3840x540

Sunlight readable 1000nits | Aspect ratio 16:2.2 | BL MTBF 100.000hrs | Low Power Consumption | Wide viewing angle of 178°H 178°V

Litemax-42.1"-bar

SSF421: 42.1" resized TFT LCD, LED Backlight 1000nits, 1900x2160 MaxRGB

Sunlight readable 1000nits | Aspect ratio 8:9 | Wide viewing angle of 178°H 178°V | MaxRGB NTSC 94%

Litemax-44.8"-bar

SSF448: 44.8" resized TFT LCD, LED Backlight 1000nits, 3840x1080

Sunlight readable 1000nits | Aspect ratio 16:4.5 | BL MTBF 100.000hrs | Wide viewing angle of 178°H 178°V

SF series is also available as Chassis version and with A/D board included
Litemax-27.3"-double

SCD273: 27.3" two resized TFT LCD, LED Backlight 1000nits, 945x1080

Sunlight readable 1000nits | Aspect ratio 8:9 | Wide viewing angle of 178°H 178°V | High contrast ratio 3000:1 | BL MTBF 70.000hrs

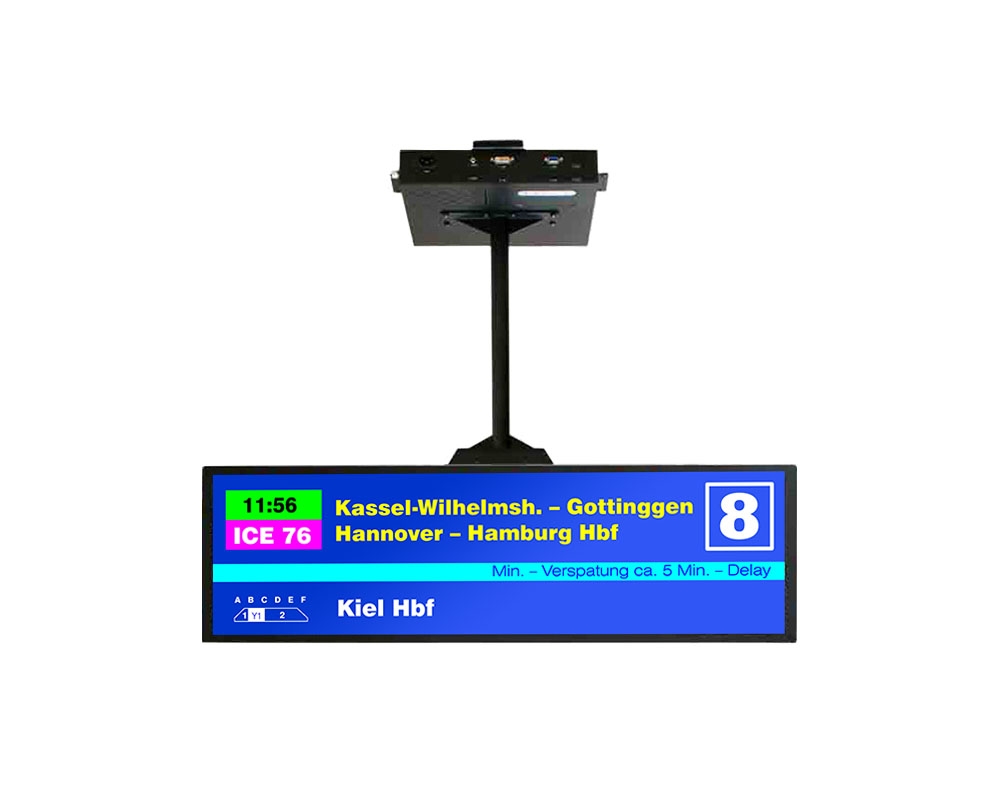

Litemax-38"-double

SSC382: 38" two resized TFT LCD, LED Backlight 1000nits, 1920x502

High brightness 700nits | Aspect ratio 16:4 | BL MTBF 70.000hrs | Low Power Consumption

Litemax-28"-double

SSC284: 28" two resized TFT LCD, LED Backlight 1000nits, 1920x357

Sunlight readable 1000nits | Aspect ratio 16:3 | Wide viewing angle of 178°H 178°V | High contrast ratio 6800:1 | BL MTBF 70.000hrs

Litemax-29.3"-double

SSC292: 29.3" two resized TFT LCD, LED Backlight 1000nits, 1366x512

Sunlight readable 1000nits | Aspect ratio 16: | Wide viewing angle of 178°H 178°V | High contrast ratio 2500:1 | BL MTBF 70.000hrs

Litemax-19"-marine

NPD1968: 19" IP65 Sunlight Readable PCT Multi-Touch Marine Display

High brightness (1,600 nits) | Advanced Optical Bonding (AOT) | High shock & vibration resistance | Picture-in-Picture function | BV Rule IACES-E10 certified; IEC 60945 compliant

NPD series: 8-24" marine displays

Litemax-19"-marine-pc

NPS1968: 19" IP65 Sunlight Readable Marine Panel PC

High brightness (1,600 nits) | Advanced Optical Bonding (AOT) | Processor: Intel® Core i5 | Chipset: Intel® H81 | Memory: DDR III SODIMM up to 16GB | Ethernet | Storage: SSD 64G

NPS series: 15-19" marine PanelPC

Litemax-fanless-panelpc

IPPC-MD18-BYT0 Wide 18.5" P-CAP Fanless Medical Panel PC with Intel® Bay Trail SoC

P-CAP multi touch screen | 1 HDMI, 3 USB, 1 COM, 2 LAN | 5M pixel camera with auto foucs (opt.) | RFID/Smart card combo reader (opt.) | Front IP54 protect | IP Phone (opt.)

Litemax-fanless-panelpc

IPPC-MR18-IVB1 with 3rd Gen. Intel® Core™ i7/i5/i3/Celeron® Mobile Processors

18.5" wide LCD, 1366 x 768, 1000nit | P-CAP 10 points touch screen | 4 USB, 2 LAN | IP68 and fanless design

Litemax-fanless-panelpc

IPPC-GP15-BYT0 Fanless Panel PC with Intel® Bay Trail SoC

15" LCD, 1024x768, 350nit | P-CAP 10 points touch screen | 1 VGA, 1 HDMI, 2 USB, 3 COM, 2 LAN, 1 Audio | IP65 (front) and fanless design

Litemax-modular-pc

IPPC-GPxx-P series: 15-21.5" modular PanelPC

WynMax Modular Panel PC Display can mix and match with Box PC

Normal and High Brightness | PCAP | Front IP65 and fanless design | 1 LVDS, 1USB
